Description
iscal POS Receipt Printer Mini Thermal Bill Printer NT-5802LYA
Basic Characteristics
Products Name: Thermal Bluetooth Receipt Printer
Model: NT-5802 LYA
It applies mobile products to supporting the use, and suited to outdoor work environments.
The feature has small size,light weight,reliable performance,simple to connect, easy to use.
Applications:
The mobile police system
The tobacco distribution system
The utility meter reading system
The mobile office / mobile logistics systems
The portable instrumentation
The testing equipment, ancillary equipment.
Low operating costs (no ribbons, ink cartridges)
Weight: 134g
Size: 105*75*45mm
Features:
n Support Windows, Java, Android OS.
n Bluetooth, USB and RS232 communication for option.
n Battery charge indicator, easy to know rest power.
n Higher print speed 90mm/sec.
n 100km TPH Life.
n Low power consumption and large capacity Lithium battery.
n 15 months warranty.
Specification:
| Overall Dimension (W×D×H) | 105×75×45mm |
| Weight | 134g |
| Color | Black |
| Effective print width | 48mm |
| Print method | Thermal line printing |
| Print commands | ESC/POS compatible command set |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12×24/ 24×24 |
| Column capacity | 32 columns/ 16columns |
| Character size | 1.5 x 3.0 mm(W x H)/ 3.0×3.0mm(WxH) |
| Paper dimensions | 58.0±0.1mm x diameter 40.0mm |
| Paper thickness | 0.06 to 0.08mm |
| Character set | Alphanumeric/ Chinese Kanji |
| Interface | USB, RS-232,Bluetooth (optional) |
| Data buffer | Up to 5K bytes |
| Power Adapter | 9V DC/2A |
| Battery Power | 7.4V DC/ 1500mA |
| Other features | Paper detection, power detection, Manual shut down |
| Working conditions | Temperature:-10°C~50°C,Humidity:10%~90% |
| Storage conditions | Temperature:-20°C~70°C,Humidity:5%~95% |
Pictures:

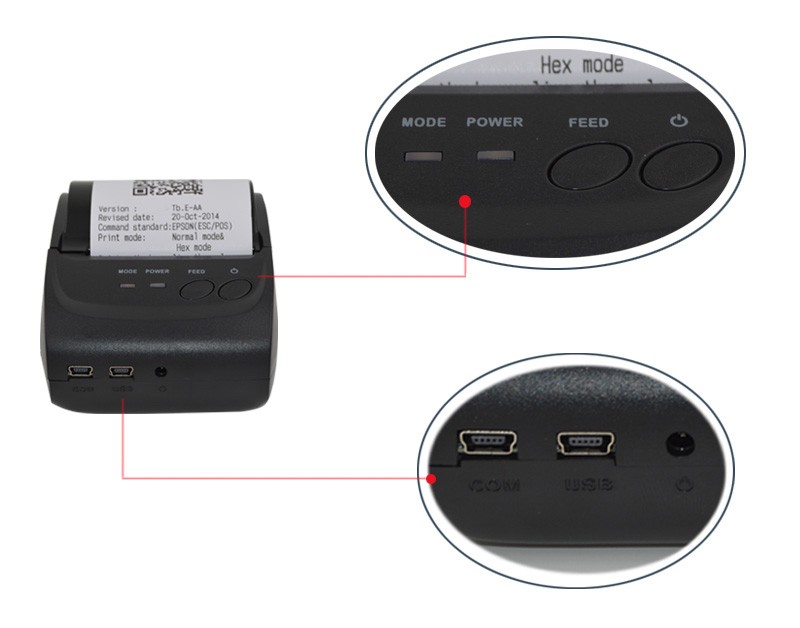

Fiscal POS Receipt Printer Mini Thermal Bill Printer NT-5802LYA

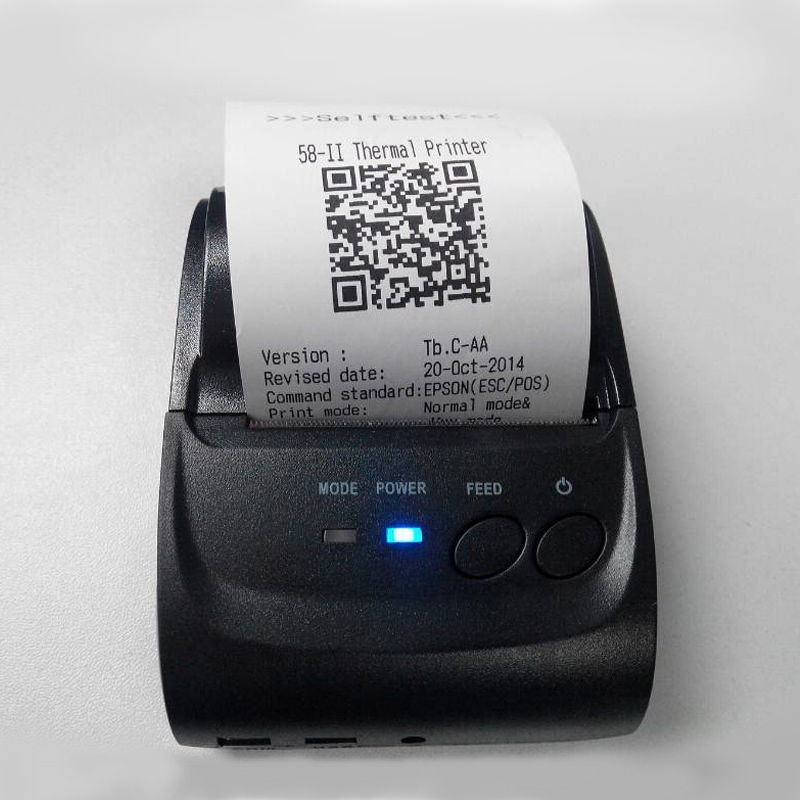

Fiscal POS Receipt Printer Mini Thermal Bill Printer NT-5802LYA

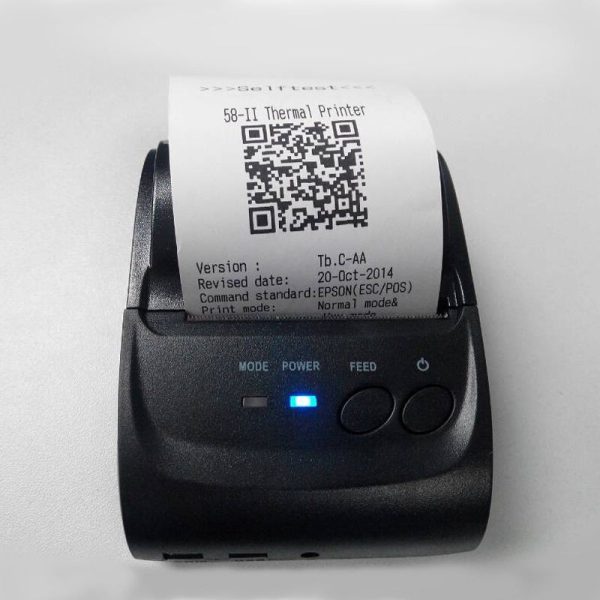

Fiscal POS Receipt Printer Mini Thermal Bill Printer NT-5802LYA
Fiscal POS Receipt Printer Mini Thermal Bill Printer NT-5802LYA
